| Name:Slim Type Mini PCI-E mSATA SSD to 2.5" SATA 3.0 22pin HDD Adapter Hard Disk SA-166/SA-066-BL |  | | Model No: SA-066-BL | | UPC(EAN): 6815153994045 | | Brand: chenyang | | Manufacturer: chenyang | | Issue Date : 2017/11/12 19:03:18 | Buy From: | |  |  | | chenyang Slim Type Mini PCI-E mSATA SSD to 2.5" SATA 3.0 22pin HDD Adapter Hard Disk SA-166/SA-066-BL
Part Number: SA-166/SA-066-BL

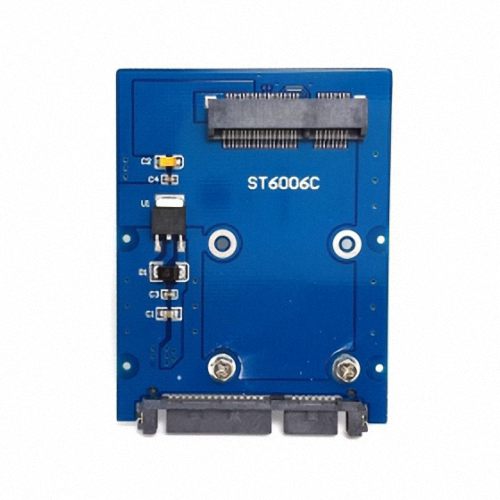

Slim Type 50Pin mSATA 3050 SSD 5x3cm to 2.5" SATA 3.0 22Pin Disk Adapter 6Gbps PCBA
Note: This adapter is only compatible with MSATA connector. Not compatible with 50mm Mini PCI-e SATA and Mini PCI-e PATA.
PCBA size: 71*53mm
Support 30 mm*50 mm size Msata SSD converted into a standard 2.5" SATA6.0Gbps interface; The speed and other properties is not changed,only form conversion interface,because such transformation does not need through the integrated circuit chip.
This product can support 30 mm*26 mm size Msata SSD if change the position of the location column in the adapter card. (You need to change it yourself).
Fully compatible with SATA interface mechanical hard drives/SSD solid state hard drives/optical drives, etc. Support Windows 7/8/10/11, Windows Server 2008 R2/2012 R2/2016/2019/ Mac OS / Linux / FreeNAS and various NAS operating systems.
SATA3.0 22pin interfaces, which can be connected to an SSD solid state hard disk as a system disk, and supports transmission rates of 6.0Gbps, 3.0Gbps, 1.5Gbps.
Slim Type Mini PCI-E mSATA SSD to 2.5" SATA 3.0 22pin HDD Adapter Hard Disk SA-166/SA-066-BL | | | Click:55919 |  |
|
|
|
|
|
|
